Technical Information

Specs

Forklifts: 2 x 6000 lbs

Operated by: City of Medicine Hat

Barricade: StageRight CC-500. Total 88′ (in 4′ sections)

Bicycle Rack: 400′ (in 8′ sections) Galvanized

Spotlights: 5 x Lycian 1290 XLT

Location: 4 located at the top of the Upper Bowl / 1 located in

Catwalk (Southside)

Com Type: RTS 2 Wire / 4 Channel Party Line System

Pipe & Drape: In house – upon request

Star Dressing Room 1: 23′ x 13′ w/ private shower, private bathroom, television, furnished

Star Dressing Room 2: 22′ x 10′ w/ private shower, private bathroom, television, furnished

Dressing Room 1: 22′ x 18′ (Locker room style)

Dressing Room 2: 22′ x 18′ (Locker room style)

Dressing Room 3: 22′ x 18′ (Locker room style)

Dressing Room 4: 22′ x 18′ (Locker room style)

Notes:

  • Dressing Rooms 1 & 2 / 3 & 4 are attached to one another and can be opened to make a larger area
  • Additional furnishings available
  • Each Dressing Room has phone and Internet capabilities

Floor Width: 85′

Floor Depth: 200′ w/ boards in (Hockey set-up) / 230′ full bleacher retraction

Floor Surface: Concrete (Summer Season) or Ice Decking – Space Age Synthetics (Hockey Season)

Dashers: removable at the East end + West end vomitories + AUX vomitory stairwells

Capacities: various capacities

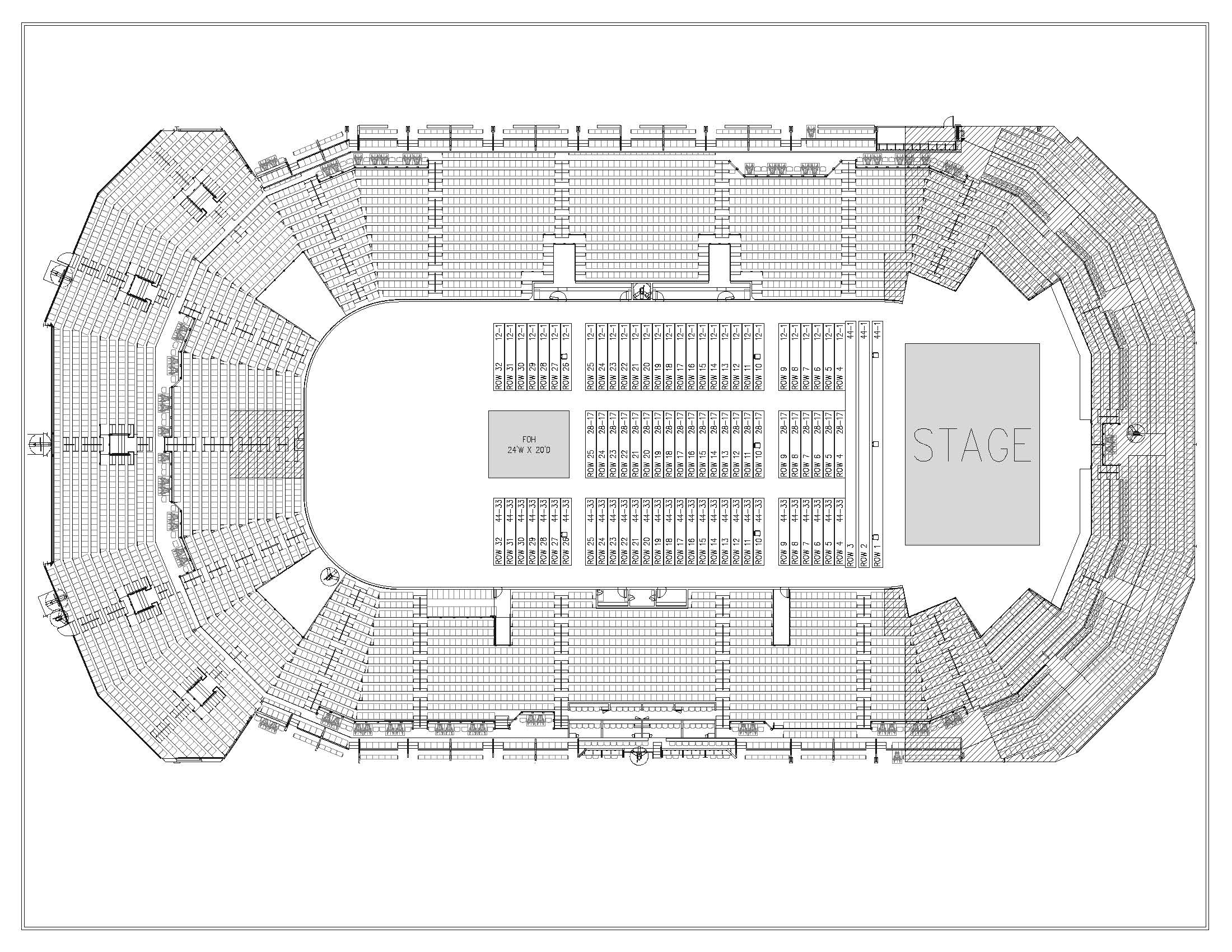

  • Full Stage Bowl
  • 3/4 Bowl Set-Up
  • 1/2 Bowl Set-Up
  • Theatre Set-Up
  • Banquet Style Set-Up

All capacities depend on set-up and approval by the Medicine Hat Fire Department.

Supplied by: Patman Productions Inc. (non-union)

Area: Loading Docks / Bay located on the East side of the building off of Box Springs Link NW

Event Floor Entrance: 14′ w x 16′ h

Docks/ Bay:

  • 3 Trucks can be loaded/unloaded at one time
  • 2 Loading Docks (w/ dock leveller – 100ft Ramp at 6% to 2% Grade)
  • 1 Loading Bay

Push Distance to Event Floor: 60′ push from Dock / Bay to Event Floor

Fire Lane Required: 6′ Minimum on Stage Left / Right – determined by event set-up

Case Storage Areas: Storage areas available – adjacent to loading area – limited area available in hallways due to Fire Exits

Notes: Security check point located in this area

Services available: All power 120/208 3 ph 5 wire

Upstage Left: 2 x 200 amp / 2 x 400 amp

Upstage Right: 1 x 100 amp / 2 x 200amp / 2 x 400 amp

Additional Powers (Bus Parking / Loading Area): 2 x 30 amp / 5 x 50 amp / 1 x 60 amp / 1 x 100 amp / 4 x 200 amp

Floor to High Steel: No Rigging from High Steel

Floor to Low Steel - Rigging Grid: 54′ and 55′ – the Building is built on an incline / Roof is on an angle / Rigging grid built into 2 sections (54′ and 55′) – Rigging Load Manual available upon request

Venue Rigging Map: available upon request. End Stage: 120,000 lbs / Center Stage: 70,000 lbs

Rigging Obstructions: Scoreboard at the centre of the building – sits at 43′ when retracted

Riggers provided by: Patman Productions Inc.

Notes: Hard Hats REQUIRED until rigging / trusses are in the air

Max Trim Height: 43′ fully retracted

Dimensions: 26′ x 26′ x 18′ h

Stage Type:

  • Stage Right
  • 108 pieces of 4′ x 8′ decking. Reversible Blk Tech Stage / Carpet

Stage Height: adjustable from 4′ to 6′

Riser Height: adjustable from 1.5′ to 2′

Stairs: 4 sets of adjustable EZ lift stairs

Skirting Available: Yes

Fire Aisle: 6′ minimum on Stage Left / Right – determined by event set-up

Distance off of Back Wall: 8′ at the center of the curve – determined by event set-up
